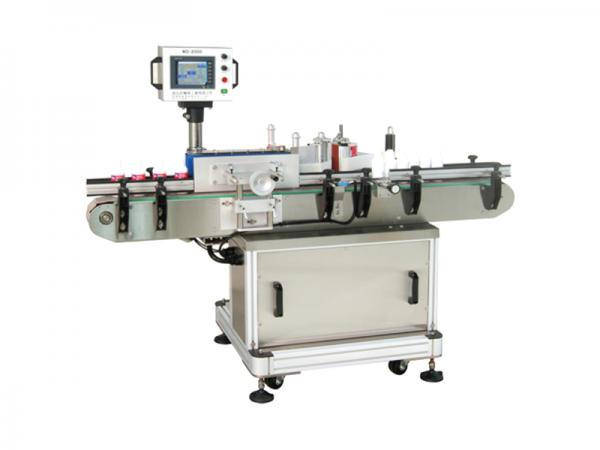

LRB SERIAL

Suitable Applications :
For partial wrap-around labelling on round containers.
1) Cubic.
2) Rectangular.
3) Flat containers.
4) All types of application with flat sur-faces.

Features :
Option Equipments
1. Hot printer.
2. LRD-2100 sensor for transparent labels (USA made).
3. Feeding / collection turn table (Dia.1000mm)

Details :
1. Machine body SUS＃304 and aluminium alloy T6 anode treatment.
2. PLC and HMI control electric system.
3. Japan made servo motor / Taiwan made step motor, Taiwan made driver unit, labeling driver.
4. Roll-on unit.
5. Bottle stability fix device.
6. Easy install in-line production.

Specifications :
Power	Ø 1x110V/Ø 1x220V/Ø 3x220V/Ø 3x380V
Speed	10~25M /min	10~32M /min	20~50M /min
Main Motor Power	60 kg /cm
Conveyer Motor	60W		90W	120W
Bottle Diameter	Ø 20~Ø 100mm
Container Height	20~140mm
Label Length	20~300mm
Machine Size	(L)1800 x (W)1100 x (H)1200 mm

CONTACT US TO LEARN MORE!

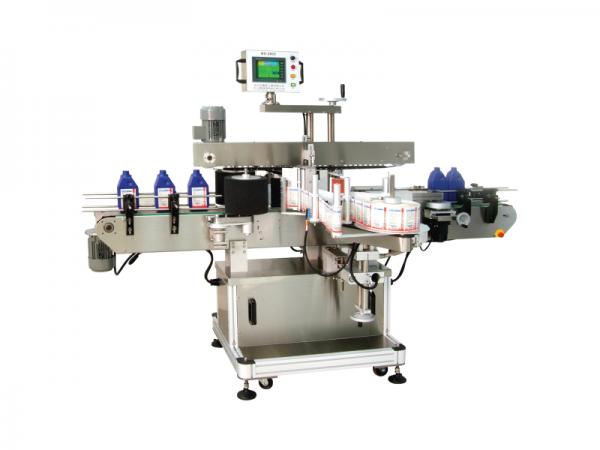

LMS SERIAL

Suitable Applications :
For symmetric/asymmetric, single/double/triple labelling on the bottleneck and two sides of containers of sundries, chemicals, medicines, foods, wines, and oils

Features :
Option Equipments
1. Hot printer.
2. LRD-2100 sensor for transparent labels(USA made).
3. Feeding / collection turn table (Dia.1000mm)

Details :
1. Machine body SUS#304 and aluminumalloy T6 anode treatment.
2. PLC and HMI control electric system.
3. Japan made servo motor /Taiwan made stmotor, taiwanmade driver unit, labelingdriver.
4. Improtedconveyor.
5. Bottle stability fix device.
6. Easy install in-line production.

Specifications :
Power	Ø 1x110V/Ø 1x220V/Ø 3x220V/Ø 3x380V
Speed	10~25M /min	10~32M /min	20~50M /min
Main Motor Power	Step Motor
Conveyer Motor	1HP	1HP	1HP
Bottle Diameter	Ø 25~Ø 150mm	Ø 30~Ø 150mm	Ø 30~Ø 160mm
Container Height	60~350mm	60~350mm	60~400mm
Label Length	20~300mm
Machine Size	(L)2440 x (W)1700 x (H)1700 mm

CONTACT US TO LEARN MORE!

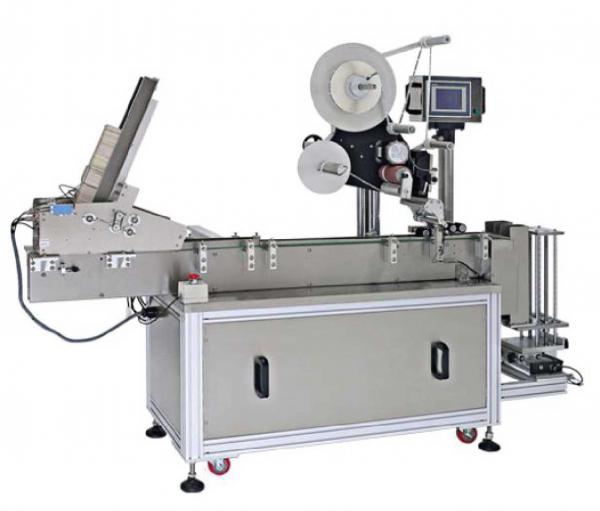

AUTOMATIC HIGH SPEED OPP LABELLING MACHINE NT-MD3000

AUTOMATIC HIGH SPEED OPP LABELLING MACHINE NT-MD3000

Suitable Applications
1) Cubic.
2) Rectangular.
3) Flat containers.
4) All types of application with flat sur-faces.

Features :
Option Equipments
1. Hot printer.
2. LRD-2100 sensor for transparent labels (USA made).

Details :
1. Machine body SUS#304 and aluminium alloy T6 anode treatment.
2. PLC and HMI control electric system.
3. Main driving motor: Japan made servo motor.
4. Labelling tension adjustment for smooth labelling performance.
5. Labelling speed is automatically synchronized with conveyor speed to ensure quality labelling.

Specifications :
Power	Ø 1x110V/Ø 1x220V/Ø 3x220V/Ø 3x380V
Speed	10~25M /min	10~32M /min	20~50M /min
Main Motor Power	40 kg /cm
Conveyer Motor	60W	90W	120W
Bottle Diameter	Square container 40~200mm
Container Height	10~200mm
Label Length	20~300mm, 20~300mm
Machine Size	(L)1500 x (W)570 x (H)1850 mmFeatures

CONTACT US TO LEARN MORE!
