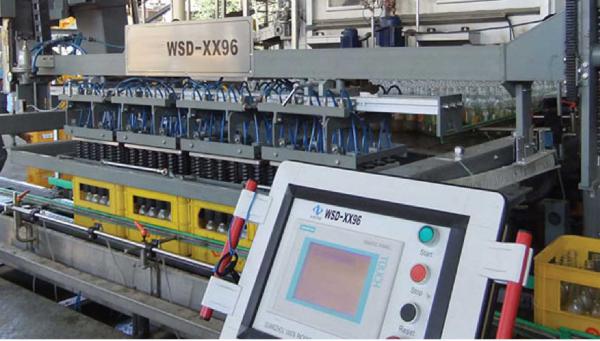

Automatic Decrator Machine

Automatic Decrator Machine

Working Principle
The crates filled with bottles are sent to the decrater continuously when the crates passing by the transit roller between quick case input device and case infeed are checked and counted by sensor when the crates reach enough quantities the case blocking device installed on the end of case quick infeed device will lift and stop the next crate entering. The crates will stop at a right position under the action of case blocking and bottle guiding then with the movement of arm swinging and lifting device the grippers will descend to a suitable height after each gripper tightly grasps a bottle, the grippers will ascend to a certain height then horizontally moves a certain distance to bottle collecting platform, the grippers will descend to a suitable height and release the bottles. The grippers will return and grasp the bottles again according to the same way with arm swinging and lifting, then grasping and releasing bottles move in cycles. Bottles unloaded on the bottle collecting platform will be sent out of the decrater. After bottles unloaded, the bottle guiding device will be back, the crates will be sent out of the machine, meanwhile, case blocking device in end of quick case infeed be back and another group of cases input. Case feeding device will finish crates feeding like this and moves in cycles, stoping and waiting bottle releasing, and crates exit after bottle released.

Technical Character
Model	NTPK-WSDXX72
Capacity	12,000bph
Packing Type	Plastic Crate
Bottle Type	Glass Bottle	Diameter : Ø50~85mm	Height : H230~330mm
Carton Dimension	L200~550mm	W140~350mm	H70~360m
Machine (L x W x H)	L4600mm x W2386mm x H2570mm
Power	8.13 KW
Power Supply	220/380V
Compressed Air	a) pressure 0.6~0.8MPa		b) consumption 280NL /min
Weight	4.5T
