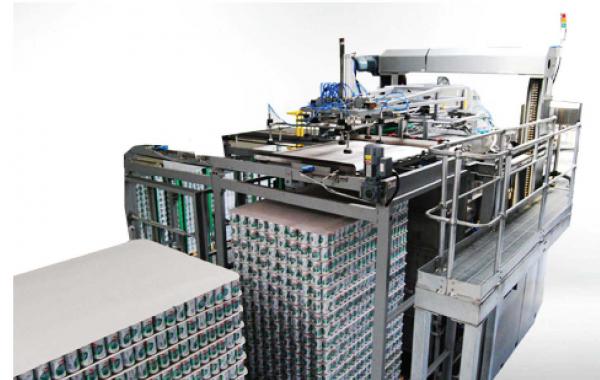

Main frame driven by chain and made of carbon steel, stable structure. Lifting fork welded wholely, firm structure. The use of wheel and rail combined with movement, horizontal adjustable. Wheel of INA brand, rail using 45# steel surface after heat treatment produced by high-frequency hardening.

Internal plates of lifting well made of stainless steel, controlled by cylinder, which can satisfy two different pallet sizes.

There is a pallet probe device of the bottle gripper for irregular pallet to make the whole pallet bottle lift to a correct height.

Suckers are installed on the bottle gripper, they are sucking the chipboard when the bottle gripper is moving the bottles, which saves the time of depalletizing. Sucker and vacuum generator using FESTO brand, long life, precise control of ventilation of solenoid valve, reducing air consumption.

Chipboard conveying and chipboard collecting magazine are fixed together, using driving lever to block the chipboard into the chipboard collecting magazine. With a function of chipboard collecting and arranging. The upper baffle plate can prevent the chipboard falling vertically.

Technical Specifications
Capacity	21000BPH
Applicable Bottle	Glass Bottle, metal can and PET bottle etc. Bottle Diameter Ø50~110mm / Bottle height H70~360mm
Dimensions	370024164345 (LWH) Pallet size : 1200x1000x150 (LWH)and other normal size
Power Supply	3P AC (380V±5%) 50Hz. Control voltage 24V.DC
Compressed Air	Working pressure 0.4 - 0.6MpaAir consumption 330~550L/min
Weight	6 T
Total Power	24KW
Noise	<85dB
Operator	2 Persons
