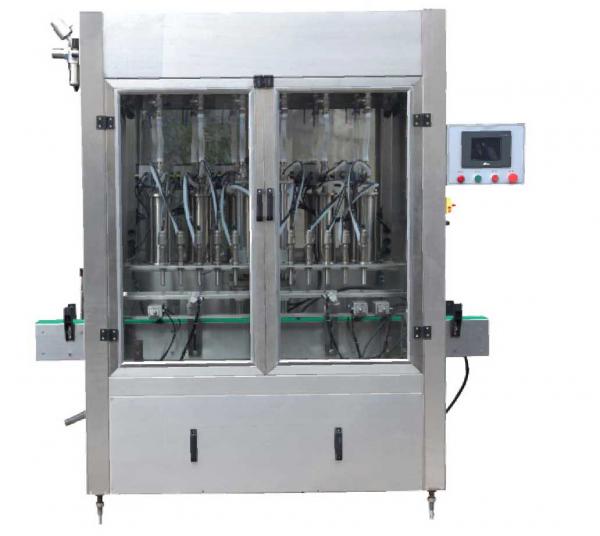

The machine adopts PLC and touch screen automation control, with accurate measurement, advanced structure, smooth operation, low noise, wide adjustment range, filling speed, etc....
The delicate servo system precisely control the filling amount with precise piston stroke providing high filling accuracy, intelligent piston is designed for users to adhensive ultimate higher accuracy with minimum adjusting mechanism.
The application of touch-screen technology, the operation of the machine is more reliable, convenient and user friendly.Photoelectric sensors, proximity switches, etc. are used in advanced sensing elements,when there is no bottle, there is no filling, plugging bottles will automatically stop and alarm.
| Model | NT-FP6A | NT-FP8A | NT-FP10F | NT-FP12F | NT-FP16F | NT-FP20F |
| Dimension | 2000mm (L) x 1100mm (W) x 2200mm (H) | (L) 2280mm | (L) 2400mm | |||
| Filling Head | 6 | 8 | 10 | 12 | 16 | 20 |
| Cpacity (1L) | 1800 B/H | 2400 B/H | 3000 B/H | 3600 B/H | 4800 B/H | 6000 B/H |
| Cpacity (500ml) | 2000B/H | 2800B/H | 3600B/H | 4500B/H | 6000B/H | 7200B/H |
| Filling Error | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% |
| Power | 1.1KW | 1.5KW | 1.5KW | 2.2KW | 2.2KW | 3KW |
| Suitable Bottle | Diameterï¼�Φ40mm——Φ110mm Heightï¼�80mm——350mm | |||||
| Neck Diameter | Φ18mm | |||||
| Filling Range | 50ml - 1000ml | |||||
| Air Source | 0.6Mpa——0.8Mpa clean and stable air source | |||||
| Power Supply | 220V, 50/60HZ | |||||
