The machine uses Schneider converter parts which are stable and durable.

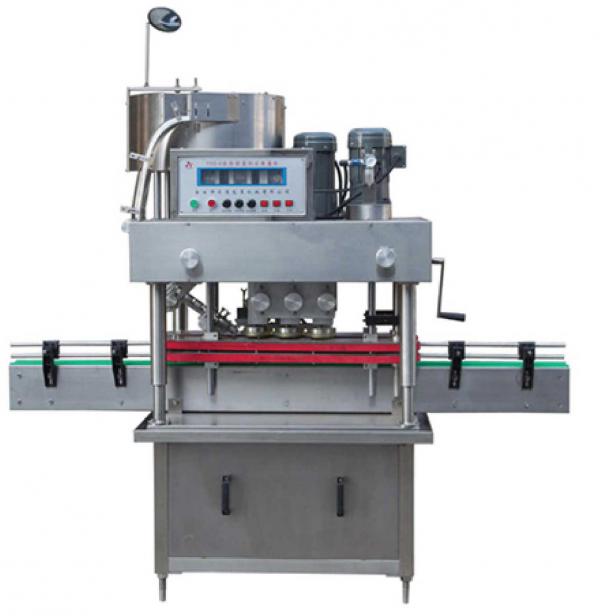

A cap sensor is installed in the cap hopper to ensure continuous cap using the cap elevators feeder. JPACKS Centrifugal Cap Sorting Bowl is ideal for high speed sorting and noise reduction for both flat, non-flat and special caps.

Specifications

Custom tooling available

Optional diameters to accommodate various cap sizes and types.

Uses a handle to adjust the height and tightening of the machine conveyor for easy adjustments.

4 A mirror is installed to check the state of caps.

The tightening belts are durable

The capping wheels are made of quality and durable materialIntelligent blow back lid system. Intelligent back lid checker, high-speed magnetic valve ejector, noise reduction, simple adjustments.

Main Technology Parameter
Capacity	≤8000 Bottles/hour
Applicable Bottle Diameter	Φ35-96mm Bottle height :80-230mm
Cap Specification	Φ12-50mm Cap height: 15-40mm
Air Pressure	0.5-0.7MPA
Power Source	220V50HZ
Power	2KW
Weight	Approx 650Kg
External Dimension	L2000 × W950 × H2100mm
