PET Hot Fill PET Moderate Temperature Fill Hot Fill Temperature Comes to 92℃ Output 16000BPH(500ml)
PET Mineral Water Bottle PET CSD Bottle PET Asepsis Fill Output 24000BPH(500ml)
Featured
PF uploading system position designed as per customer's site requirement Adopt corner preform sending guiding rail which saved spaced.
Unique gripper design guaranteed no preform droping and high concentricity Independent rotary gripper disgn, easy and flexible for reversal.
Adopt linear heating lamp, preform can be heated evenly. The lamp box can be adjusted up and down or deep direction. The lamp box can be reversed which is easy for installation and maintenance. The lamp can be adjusted horizontally and vertically or rotated flexibly.
Closed loop temperature control mode Preform temperature scope when set , it can be adjusted automatically and comes to stable status quickly.
Lockl-atch-type mold open and close cam design. Lightness in structure, easy to operate, reliable to clamp and simple for maintenacne.

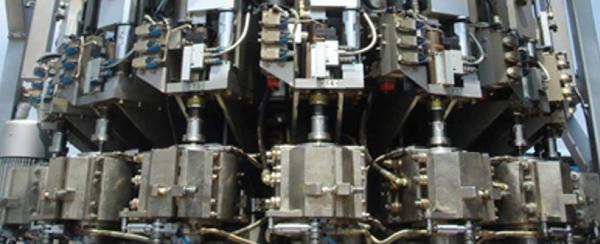

The brake system guaranteed the safety of the mechanical system. The centralized lubrication system can lubricate the important parts of the machine automatically The strecth bottle blowing cam guaranteed the stability and high speed of bottle blowing. The torque device of the conveying system guaranteed the safety of the machine.
Eugen Seitz rapid combination blowing air valve guaranteed fast reaction and compliance of air blowing. The blow mold which made of special steel is suitable for different bottle. Optimized rotary conveying device improved the standing time, bottle quality and blowing speed.
The oil-water allocation system is the crucial equipment of the hot-fill blow machine. ECOBLO-16HR adopts German MAIER oil-water allocator which guranteed the uniformity of the temperature in each cavity and its durability.
Machine adopts Siemens S7 series control system. The perfect PLC control program and high speed reaction make the machine system controlled accurately.
